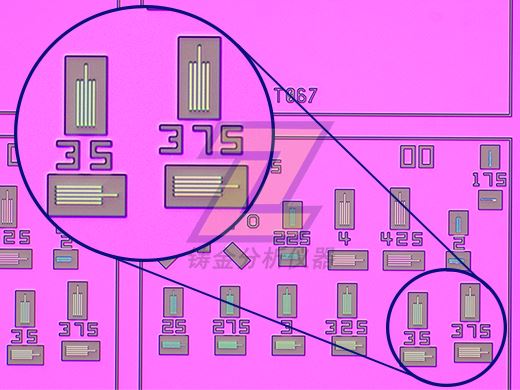

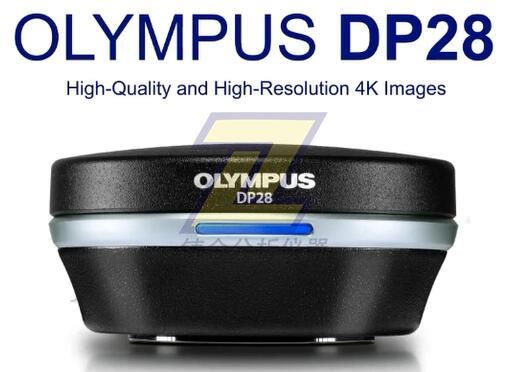

The DP28 digital microscope camera for industrial inspection combines powerful features, precise color accuracy, and up to 4K resolution across a wide field of view to provide high-resolution images of your inspection samples that are free from artifacts. Make your inspections fast and efficient with images that are sharp and clear, even when moving the stage.
DP28顯微鏡攝像頭規(guī)格：
芯片類型： C 接口 CMOS 攝像頭
芯片大小：1 英寸
記錄面積：14.158 mm x 7.5 mm
對角線： 16.02 mm
最大分辨率：4104 x 2174 像素 892 萬像素
顯微鏡攝像頭端口： C 接口
輸入/輸出：
攝像頭側：USB 3.1 Type-C( 帶鎖緊螺釘)
計算機或 DP2-AOU：USB 3.1 Type-A
DP28 specifications:
|
Microscope Camera Mount |
C-mount |
|
|
Image Sensor |
System |
Color CMOS Camera |
|
Size |
1 in. Color CMOS |
|
|
Pixel Size |
8.9 megapixel |
|
|
Scanning Method |
Progressive scanning |
|
|
Shutter Type |
Global shutter |
|
|
Maximum Recording Pixel |
4104 x 2174 Full Resolution |
|
|
Movie Frame Rate |
Up to 64fps Full HD |
|
|
Exposure time |
Auto：27 μs to 15 s |
|
|
Camera I/F |
USB3.1 Type-C® |
|
|
Dimensions |
76.7（W） × 70.1（D） × 37.3（H）mm |
|
|
Weight |
380g |
|
|
Interface |
Display output: 2 × HDMI |
|
|
Scale display |
Scale bar supported |
|
|
Measuring functions*2 |
Measurement function count, distance between 2 points, polyline, 3-point circle, rectangle, 3-point angle, 4-point angle, perpendicular, area and perimeter of polygon, distance between 2 centers, ruler |
|
*1 USB
3.1 Gen1 is compatible with USB 3.0
*2 The DP28-AOU configuration only
